| Brand Name : | TYANSHINE |
| Model Number : | TX-4566RGBLA500FC120-NUVENG-01 |
| Certification : | ISO9001:2008 ROHS |
| Price : | negotiation |
| Payment Terms : | ExW |
| Supply Ability : | 10,000pcs/week |
| Delivery Time : | 5-10 days |

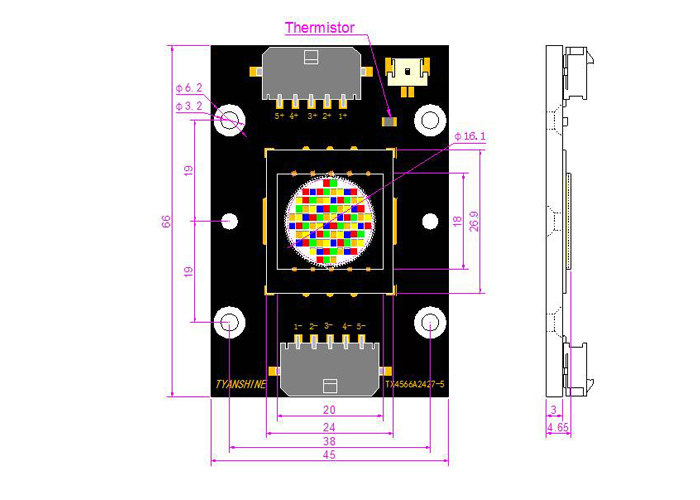

Stage Lighting 500W LED Module RGBLA Multicolor Profile LED Engine
Features:
1, Small LES, 5W/mm²
2, Eutectic flip-chip bonding technique
3, Higher Forward Voltage, Lower Forward Current,
4, Average efficiency upto 40lm/W @Tj=85℃ with full power
5, Excellent effect of color-mixing for 3 Colors or 4 Colors LEDs light source
6, Copper MCPCB, high thermal conductivity
Specifications:
| Item Code | Color | IF (A) | VF (V) | WaveLength(nm) CCT(K) | Brightness (Lm) | Resistance (K/W) | LES(mm) |
| 4566RGBLA500 | Red | 1.3 | 45-50 | 620-625 | 2100-2400 | 0.09 | Φ16.1 |
| Green | 1.3 | 55-60 | 522-526 | 3800-4200 | |||
| Blue | 1.3 | 45-50 | 452-458 | 750-900 | |||
| Lime | 1.3 | 45-50 | 4000-4500 | 4000-4500 | |||
| PC-Amber | 1.3 | 45-50 | 1800-2000 | 2300-2600 |
Applications:
Entertainment lighting
Architectural lighting
Medical lighting
Event lighting
Stage lighting Projection
